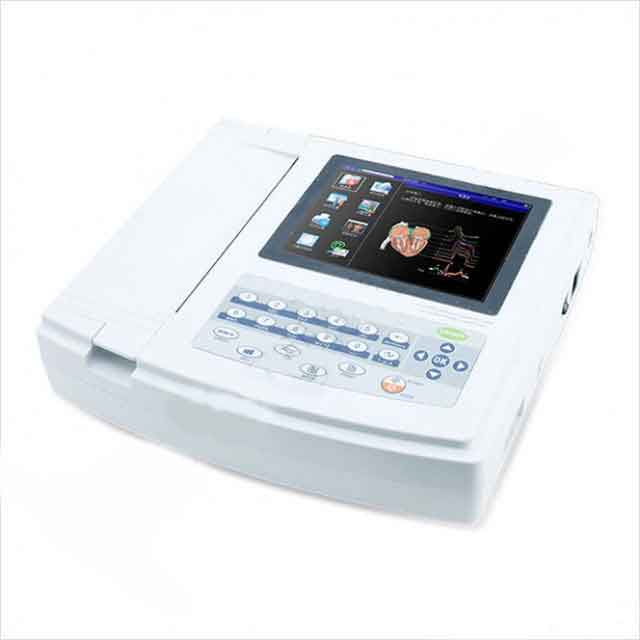

CMS 1200G ECG Machine Twelve Channel

Specification:

• Lead: Standard 12 leads
• Patient leak current: <10uA
• Input impedance: >=50M
• Frequency response: 0.05 ~ 150Hz(-3dB)
• Time constant: >3.2S
• CMRR: >100dB
• Dimention of recording paper: 80mmx20m
• Paper speed: 25mm/s, 50mm/s
• Sensitivity choice: 5, 10, 20mm/mV.
• Measurement parameters: HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• 8″ TFT display 800×600 pixels. LED backlight
• Simultaneous 12 leads acquisition and display
• Digital signal process technique, AC filter, baseline filter, EMG filteretc.
• Auto-analysis and auto-interpretation
• Multi-language options: Germany, France, Italian, Turkey, etc
• Built-in lithium rechargeable battery,
• USB and LAN socket for uploading data to PC
• Memory: Built-in flash memory. Store more than 1000 pieces of archive
• Product safety type: Class I, CF. Defibrillation and pacing protection
• Enduring polarization voltage: ± 300mv
• Nosie level: <15uVp-p
• Dimension: 340mm(L) x 320mm(W) x 80mm(H)
