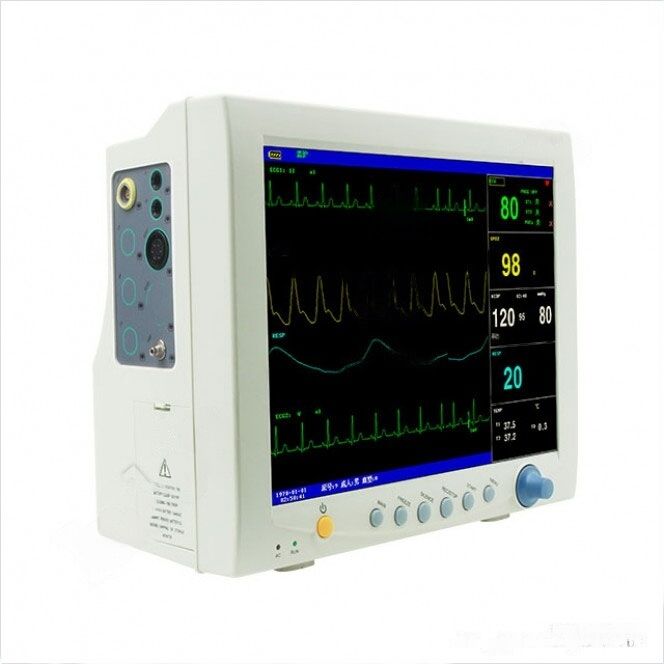

CMS8000 Multi Parameter Patient Monitor

Main Features:

• 12.1″ Color TFT LCD display with waveforms upto 8 Channels.
• Portable, streamline handle design.
• Monitor measures from Adult and Neonates.
• Graphic and tabular trend for 96 hours for all parameters.
• Multi-Screen format.
• Audible and Visual Alarms with adjustable alarm ranges.
• Powerful data management and storage capacity.
• Manual or Automatic NIBP measuring.
• With 500unit memory.
• Rechargeable Battery Backup.
• Weight : 4.5 Kg. approx.

Respiration:

• Method : RA-LL impedance
• Measurement Range : Adult : 0-120rpm, Paediatric Neonatal : 0-150rpm
• Apnea Alarm : Yes

Temperature:

• Resolution : 0.1° C
• Channels : Dual – Channel
• Measurement Range : 0-50° C

IBP (Ungradable):

• Channel : 2 Channels
• Pressure Transducer : Sensitivity : 5 (mV V mmHg)
• Transducer Site : ART, PA, CVP, RAP, LAP, ICP
• Alarm Range : -10~300mmHg

ECG:

• 5-lead or 12-lead selectable
• Input : 5-lead : RA; LA; RL; LL; V Or R; L; F; C
• Lead Selection : I; II; III; avR; avL; avF; Vx; CAL
• Gain Selection : x0.25, x0.5, x1, x2, auto
• Sweep Speed : 12.5mm/s, 25mm/s, 50mm/s
• Accuracy : +1bpm or +1%, whichever is greater
• Protection : Withstand 4000V AC/50Hz Voltage in isolation against electrosurgical and defibrillation
• Calibration Signal : 1mV=5%
• Operation Modes : Diagnostic, Monitor, Surgery
• Heart Rate Range : Adult : 15-300bpm Paediatric / Neonatal : 15-350bpm
• Measurement Range : -2.0mV ~ 2.0mV
• S-T Detection : Yes, Audible and Visual Alarm, Alarm events recallable

NIBP:

• Method : Oscillometry
• Operation Modes : Manual Automatics / STAT
• Measurement Unit : mmHg / KPa selectable
• Measurement types : Systolic, Diastolic, Mean
• Measurement Range : Adult : 10-270mmHg
• Over-Pressure Protection : Yes
• Resolution : 1mmHg
• Accuracy : The mean error shall be less than ±5mmHg, the standard deviation shall be less than ±8mmHg
• Alarm : Systolic, Diastolic, Mean

SPO2:

• Measurement Range : 0-100%
• Accuracy :±2% (70~100%); 0~69% Unspecified
• Alarm Range : 0-100%
