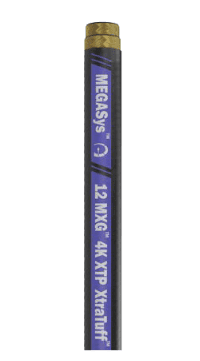

MXGTM 4K MEGASYS SPIRAL WIRE HOSE – SAE 100R12
MXGTM 4K MEGASYS SPIRAL WIRE HOSE – SAE 100R12
Product Number: GHH408
Free
Recommended For: Hydraulic applications, built with our proprietary wire-braid process technology, MegaSys™ MXG™ 4K hose is lightweight, highly flexible, and qualified to 1,000,000 impulse cycles with Gates couplings. MXG™ 4K exceed performance criteria of SAE 100R12, EN 856 R12, and ISO 3862 R12(Size-16 also exceeds EN856 4SP performance requirements), exceed all criteria of ISO 18752 280DC & SAE100R19.
Tube: Black, oil resistant, synthetic rubber tube.
Reinforcement: Two layers of braided, high-tensile steel wire reinforcements
Cover: Black, XtraTuff™ Plus abrasion resistant, ozone resistant, synthetic rubber; smooth cover. MSHA Flame Resistant
Temp. Range: -40ºC to +121ºC
Coupling: GS (GS1F-2 Ferrule for sizes -6,-8,-10,-12 & GS1F-4 Ferrule for size -16)
